Product Details:
Payment & Shipping Terms:
|
| Sizes: | 2" - 36" ,DN 50 - DN 900 | Pressure Rating: | Class150 - Class 2500 Or PN 16 - PN 420 |
|---|---|---|---|
| Material Of Valve Body: | WCB, LCB, CF8, CF8M, 4A, 5A, A105, LF2, F304, F316, F51, F53, Etc. | Operated By: | Pneumatic, Hydraulic And Electric Actuator |
| High Light: | metal seated ball valve,electric actuated ball valve |
||

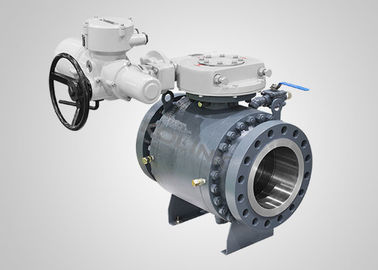

Electric Actuated Ball Valve Motorized On-off & Modulating Type Automation
By utilizing electrical actuators, ball valves are able to achieve precise positioning control, and much faster movement than manual operated ball valves. The electric actuators may be only to open and close the valve, or may allow intermediate positioning and remote indication the position of the valve.
Electric actuators increase efficiency and are becoming more and more popular as automation technology moves toward decentralization.
Kolink offers ball valves with ISO 5211 direct mounting pads for fast connection and disconnection with electric actuators.
Features of Electric actuated ball valves:
Split Body, End Entry
2-Piece or 3-piece Body
Full Port for Pigging Operation
Fire Safe to API 607
Antistatic Device
Anti-blowout Stem
Optional Direct Mounting to ISO 5211
Applicable Standards of Electric actuated ball valves:
a) Design & Manufacture: API 6D, BS 5351, API 608, ISO 17292, MSS SP-72
b) Fire-safe: API 607, API 6FA
c) Face to Face: API B16.10, API 6D, EN 558, DIN 3202
d) End Connection: ASME B16.5, EN 1092, JIS B2220, ASME B16.25
e) Test and Inspection: API 6D, EN 12266, API 598
