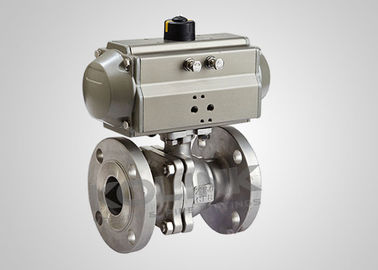

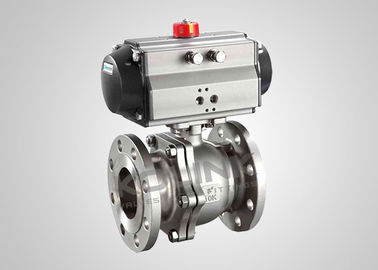

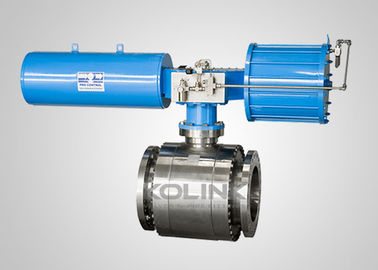

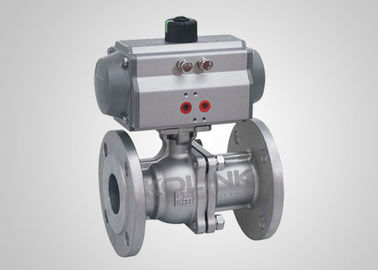

Pneumatic Actuated Ball Valve 1/2"-16" On-off & Modulating Type

Pneumatic Actuated Ball Valve provides a cost-effective solution for the shut-off control of medium flows. Actuation is either single or double acting with a range of configurable options including limit switches, solenoid valves, positioners, FRLs and gearbox overrides.

Kolink Pneumatic Actuated Ball Valves could be assembled via either bracket connection between the valves and actuators, or the direct ISO5211 mounting pads. The pneumatic quarter-turn rack-and-pinion actuator is sized with a 30% - 50% safety factor built-in, based on a pilot pressure of 6 Bar.

Pneumatic Actuated Ball Valve is suitable for industrial applications; on/off duty, water isolation, water treatment and compressed air, offering a good cost saving typically against electric actuated valves.

• Standard Double Acting Pneumatic Actuator
• Optional Single Acting Spring-return Pneumatic Actuator for Fail safe
• Optional limit switches, solenoid valves, positioners, FRLs and gearbox overrides
• Fire Safe to API 607
• Antistatic Design
• Anti-blowout Stem

• Design & Manufacture: API 6D, BS 5351, API 608, ISO 17292, MSS SP-72
• Fire-safe: API 607, API 6FA
• Face to Face: API B16.10, API 6D, EN 558, DIN 3202
• End Connection: ASME B16.5, EN 1092, JIS B2220, ASME B16.25
• Test and Inspection: API 6D, EN 12266, API 598
