Product Details:
Payment & Shipping Terms:
|
| Sizes: | 1/2" - 2" Or DN12 - DN50v | Pressure Rating: | Class 150 - Class 2500 Or PN 16 - PN 420 |
|---|---|---|---|
| Material Of Valve Body: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, Etc. Operated By: Handwhe: | A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, Etc. | Operated By: | Handwheel |
| High Light: | cast steel gate valve,gear operated gate valve,API 602 Forged Steel Gate Valve |
||

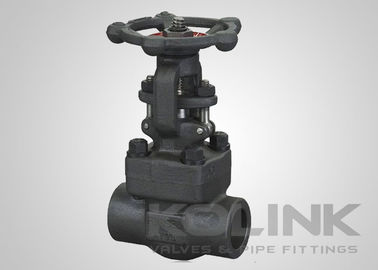

API 602 Forged Steel Gate Valve Socket-weld End SW Regular Port Reduced
Features of Forged Steel Gate Valves:
Outside screw and yoke
rising stem and non-rising handwheel
Solid wedge
Full port or conventional port
Bolted bonnet, welded bonnet or pressure seal bonnet
Socket weld (SW), threaded, butt welded (BW) or flanged end
Applicable standards of Forged Steel Gate Valves:
a) Design & Manufacture: API 602, BS 5352, ASME B16.34
b) Face to Face: ASME B16.10, EN 558
c) Connection End: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5, EN 1092
d) Test and Inspection: API598, EN 12266
