| Sizes: | 2" - 48" Or DN50 - DN1200 | Pressure Rating: | Class 150 - Class 2500 Or PN 16 - PN 420 |
|---|---|---|---|
| Valve Materials: | WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, Duplex Stainless Steels, Etc. | Operated By: | Handwheel, Gear, Pneumatic, Hydraulic And Electric Actuator |
| High Light: | cast steel gate valve,gear operated gate valve,Large Gear Operated Gate Valve |
||

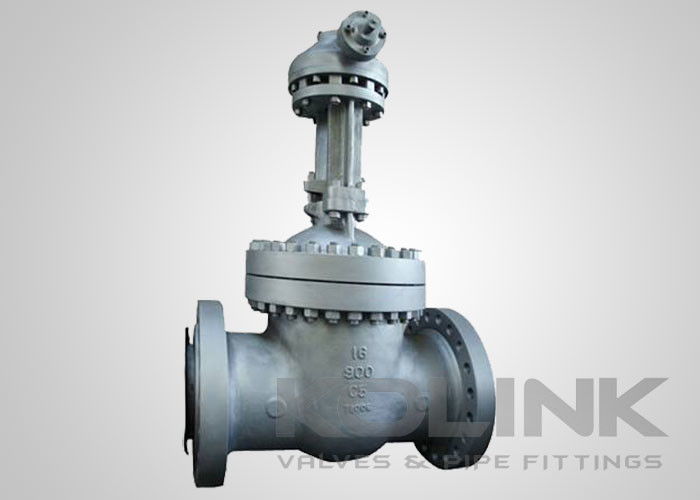

Gear Operated Gate Valve Large Size Full Port RF Flanged Flexible Wedge
Features of Gear Operated Gate Valves:
Bolted bonnet
Outside screw and yoke
Rising stem and non-rising handwheel
Flexible wedge, fully guided
Metal-to-metal seat
Renewable seat ring and stem backseat
Manual operation standard, gear operator and actuation available
Butt weld end
Flange end: raised face or ring type joint
Applicable standards of Gear Operated Gate Valves:
a) Design & Manufacture: API 600, API 6D, BS 1414
b) Face to Face: API 6D, ASME B16.10, EN 558, DIN 3202, BS 2080
c) Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220
d) Test: API 600, API 6D, EN 12266, ISO 5208
