Product Details:
Payment & Shipping Terms:
|
| Sizes: | 2" - 48" Or DN50 - DN1200 | Pressure Rating: | Class150 - Class1500 Or PN16 - PN250 |
|---|---|---|---|
| Material Of Valve Body: | WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, Etc. | ||
| High Light: | double door check valve,dual plate check valve |
||

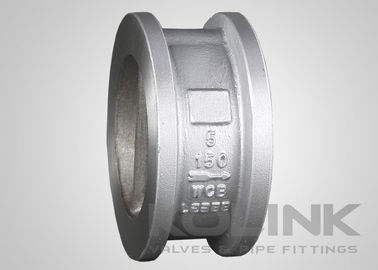

Duo Check Valve Cast Steel Dual-Plate Wafer Check Valve Double-door
Features of Dual-Plate Wafer Check Valves:
Lift Spring Loaded Disc Design
Bolted Cover
Internal Hinge Pin Design Standard
Through-body Hinge Pin Design Available
Renewable Seat
Flanged or Butt-welding Ends
One-way flow Control
Applicable Standards of Dual-Plate Wafer Check Valves:
a) Design&Manufacture: API 6D, BS 1868, ASME B16.34
b) Face to Face: API 6D, ASME B16.10, EN 558
c) Connection End: ASME B16.5, ASME B16.25, EN 1092, JIS B2220
d) Test and Inspection: API 6D, EN 12266, API 598, BS 6755
