Product Details:
Payment & Shipping Terms:
|
| Sizes: | 2" - 48" Or DN50 - DN1200 | Pressure Rating: | Class150 Or PN10 - PN16 |
|---|---|---|---|
| Materials Of Valve Body: | GG25, A126 B, GGG40, A536, WCB, LCB, CF8, CF3, CF8M, CF3M, Etc. | Operated By: | Lever, Gear, Pneumatic, Hydraulic And Electric Actuator |
| High Light: | ductile iron butterfly valve,rubber lined butterfly valve,Double Flanged Rubber Lined Butterfly Valve |
||

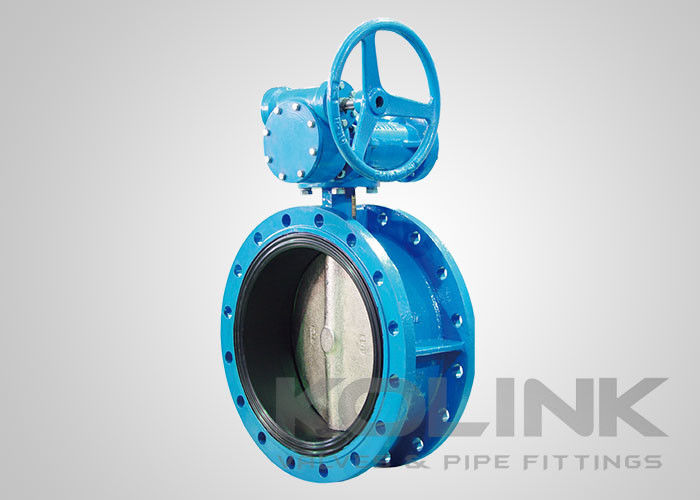

Double Flanged Rubber Lined Butterfly Valve Concentric Ductile Iron GGG50
Resilient seated butterfly valve uses the flexibility of rubber seat, could easily achieve zero leakage, therefore is a widely applied valve in oilfield, agriculture, water & wastewater, and mining industries. Due to its rubber lined body materials, it is usually used in low-pressure lines.
Flanged butterfly valves have longer face-to-face dimensions and stronger structure, compared with wafer or lug type butterfly valves. The vulcanization or lining process is, therefore, more complicated than wafer or lugged butterfly valves. For butterfly valves size larger than 24", the flanged end is recommended for longer service.
Features of Flanged Center Line Butterfly Valves:
Center Line Resilient Seat
Bi-Directional Sealing
Shutoff and Throttling Operation
Flanged End
Applicable Standards of Flanged Center Line Butterfly Valves:
a) Design & Manufacture: API 609, EN 593, AWWA C504
b) Face to Face Dimension: API 609, EN 558
c) End Connection: ASME B16.5, EN 1092
d) Test and Inspection: API 598, EN 12266
