Sizes: | 2" - 24" Or DN50 - DN600 | Pressure Rating: | Class 150 - Class 2900 Or PN 16 - PN 160 |
---|---|---|---|
Valve Materials: | WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, Duplex Stainless Steels, Etc. | Operated By: | Wrench, Gearbox, Pneumatic, Hydraulic And Electric Actuator |
Highlight: | ptfe sleeved plug valve,Non Lubricated Plug Valve,API 599 PTFE Sleeved Plug Valve |

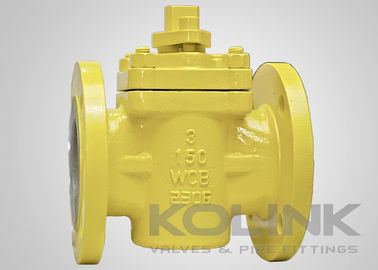

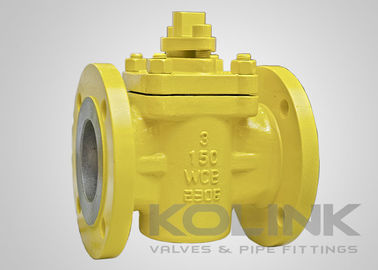

PTFE Sleeved Plug Valve Non-Lubricated Cast Steel Class 150-900 API 599
Features of PTFE Sleeved Plug Valve:
Polymeric sleeve/seat
Self-cleaning metal edge
Bolted Cover
Manual operation standard, gear operator and actuation available
Flange end or butt-weld end
Applicable standards of PTFE Sleeved Plug Valve:
a) Design & Manufacture: API 599, API 6D
b) Face to Face: API 6D, ASME B16.10, EN 558, DIN 3202, BS 2080
c) Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220
d) Test: API 598, API 6D, EN 12266, ISO 5208
