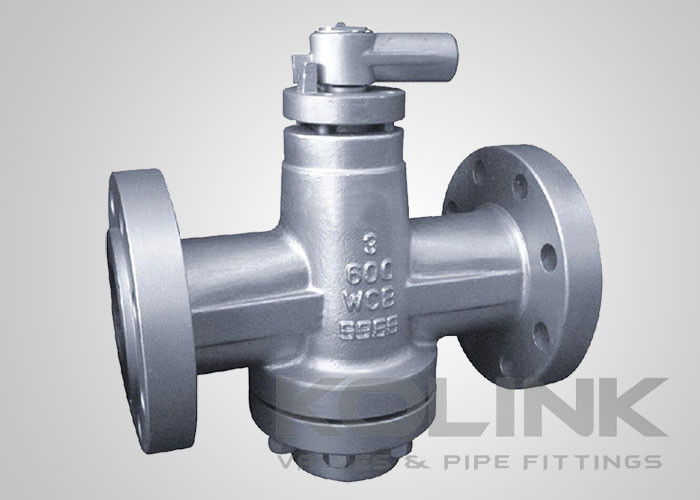

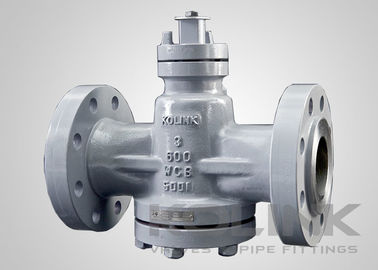

Pressure Balanced Lubricated Plug Valve, Cast Steel Plug Valve Class 150-1500

Pressure Balanced Lubricated Plug Valve Cast Steel Flanged Class150-1500

A lubricated valve uses a lubricant that is injected under pressure between the plug face and body seat to reduce friction and seal ports. The Plug surface gets constantly lubricated by the sealant that moves from the center cavity through radial holes into lubricant grooves on the plug surface.

The lubricant used is suitable for the process fluid. Lubricated plug valves perform well in processes that utilize fluids which carry mildly abrasive particles such as dirty upstream applications, gas pipeline systems that need bypass valves, and as blow-down valves on valve stations, and the valves are often used in applications that have infrequent operations.

Features of Pressure Balanced Lubricated Plug Valve:

Metal-to-metal seat
Lubricant injection for bubble tight seal
Inverted Plug with the bottom cover
Pressure Balanced Type, light operation
Manual operation standard, gear operator and actuation available
Flange end: raised face or ring type joint

Applicable standards of Pressure Balanced Lubricated Plug Valve:
a) Design & Manufacture: API 599, API 6D
b) Face to Face: API 6D, ASME B16.10, EN 558, DIN 3202, BS 2080
c) Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220
d) Test : API 598, API 6D, EN 12266, ISO 5208
