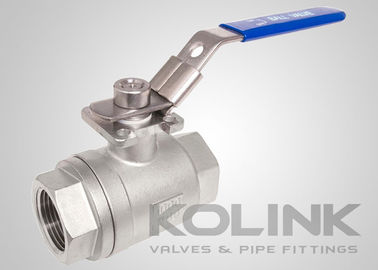

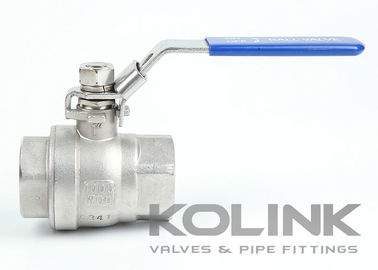

2-piece Ball Valve BSPT NPT 1000PSI Full Bore CF8 CF8M Stainless Steel

2-piece Stainless Steel Ball Valve BSPT Threaded NPT 1000 WOG Full bore CF8 CF8M

The 2-piece stainless steel ball valves are the most widely used ball valves. The 2-piece ball valve will open or shut off flow on most liquids and gases quickly and easily and is suitable for just about any application where a simple on/off action is needed. Flow rate can also be controlled by partially opening or closing the valve to various degrees.

Being threaded ball valves they are quick to install and easy to use, requiring no tooling for installation. The 2 piece ball valve is an economical full-port ball valve (full bore), allowing the inside diameter of the pipe to remain constant and unrestricted. This means that the 2 piece SS ball valve has no pressure drop and keeps the flow rate high. This type of ball valve are used on a wide range of liquid and gaseous duties in general and industrial chemical applications.

Features of 2-piece Stainless Steel Ball Valves:
1000 PSI Pressure Rating

WOG (Suitable for Water, Oil & Gas media)

Full Port Ball Valve (Full Bore)

Female NPT Threaded End for Pipe Connection

Floating Ball Type
Antistatic Design
Blow-out Proof Stem
Optional lockable wrench handle

Applicable Standards of 2-piece Stainless Steel Ball Valves:
a) Design & Manufacture: ASME B16.34, BS 5351, API 607
b) Face to Face: Kolink’s Standard
c) End Connection: NPT / BSP Threaded
d) Pressure Test: API 598, EN 12266
