Pressure-seal Bonnet Forged Steel Gate Valve PSB High Pressure SW End

I'm Online Chat Now

Pressure-seal Bonnet Forged Steel Gate Valve PSB High Pressure SW End

Pressure-seal Bonnet Forged Steel Gate Valve PSB High Pressure SW End
Pressure-seal Bonnet Forged Steel Gate Valve PSB High Pressure SW End Pressure-seal Bonnet Forged Steel Gate Valve PSB High Pressure SW End

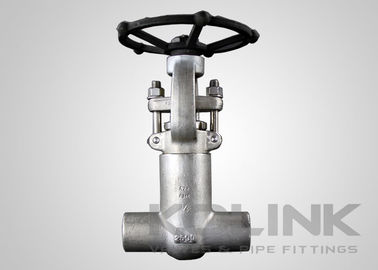

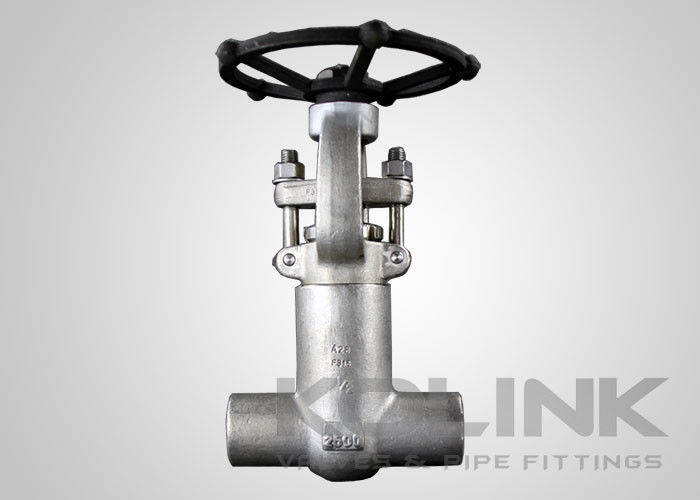

Large Image :  Pressure-seal Bonnet Forged Steel Gate Valve PSB High Pressure SW End

Product Details:
Place of Origin: CHINA
Brand Name: KOLINK
Certification: PED 2014/68/EU,API 6D and ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 2-8 Weeks
Payment Terms: T/T, L/C
Supply Ability: 1000 Pieces/Month
Detailed Product Description
Sizes: 1/2" - 2" Or DN12 - DN50 Pressure Rating: Class 150 - Class 2500 Or PN 16 - PN 420
Material Of Valve Body: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, Etc. Operated By: Handwheel
High Light:

forged steel gate valve

,

forged steel check valve

Features of Forged Steel Gate Valves (Pressure Seal Bonnet):
Outside Screw & Yoke
Solid wedge
Full port or conventional port
Pressure Seal Bonnet
Socket Weld (SW), Butt Weld (BW), Threaded End Available



Applicable standards of Forged Steel Gate Valves (Pressure Seal Bonnet):
a) Design & Manufacture: API 602, BS 5352, ASME B16.34
b) Face to Face: ASME B16.10, EN 558
c) Connection End: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5, EN 1092
d) Test and Inspection: API598, EN 12266
