Reduced Port Trunnion Ball Valve API 607 Fire Safe DN50-DN1200

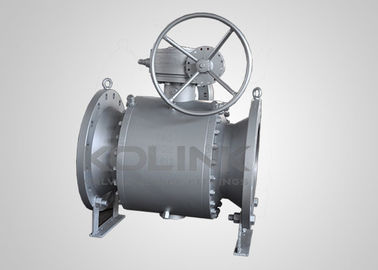

Large Image : Reduced Port Trunnion Ball Valve API 607 Fire Safe DN50-DN1200

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T, L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

2" - 48" ,DN 50 - DN 1200

Pressure Rating:

Class150 - Class 2500 Or PN 16 - PN 420

Material Of Valve Body:

A105, F304, F304L, F316, F316L, 4A, F51, Etc.

Operated By:

Lever, Gear Or Pneumatic, Hydraulic And Electric Actuator

Highlight:

metal seated ball valve

electric actuated ball valve

Reduced-port Ball Valve, Reduced-bore Ball Valve Forged Steel Fire-safe API 607

Sizes 2" - 48" ,DN 50 - DN 1200
Pressure Rating Class150 - Class 2500 or PN 16 - PN 420
Material of valve body A105, F304, F304L, F316, F316L, 4A, F51, etc.
Operated by Lever, Gear or Pneumatic, Hydraulic and Electric actuator

Reduced Port Ball Valve Reduced-Bore Trunnion-Mounted Forged Steel Tailormade

Features of Reduced-Bore Trunnion Mounted Ball Valves:

Trunnion Mounted Ball
2-Piece or 3-piece Body
Full Port or Reduced Port
Fire Safe to API 607
Antistatic Design
Anti-blowout Stem

Applicable Standards of Reduced-Bore Trunnion Mounted Ball Valves:

Design & Manufacture: API 6D, BS 5351, API 607
Face to Face: API B16.10, API 6D, EN 558, DIN 3202
End Connection: ASME B16.5, ASME B16.25, EN 1092, JIS B2220
Test and Inspection: API 6D, EN 12266, API 598

Tag:

electric actuated ball valve,

metal seated ball valve,

high pressure ball valve
