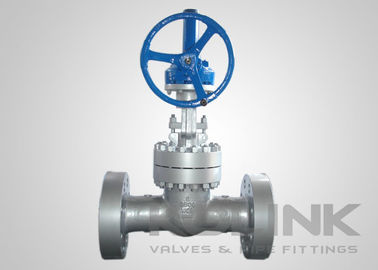

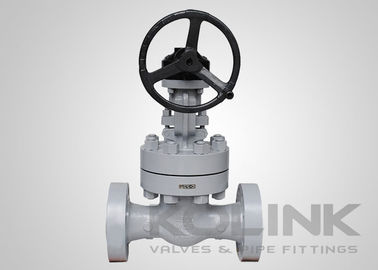

High Pressure Gate Valve Class 1500-2500 API 600 Flanged

Large Image : High Pressure Gate Valve Class 1500-2500 API 600 Flanged

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T, L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

4" - 32" Or DN100 - DN800

Pressure Rating:

Class 1500 - Class 2500 Or PN 260 - PN 420

Valve Materials:

WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, Duplex Stainless Steels, Etc.

Operated By:

Handwheel, Gear, Pneumatic, Hydraulic And Electric Actuator

Highlight:

high pressure gate valve

gear operated gate valve

API 600 Approved High Pressure Gate Valve

High Pressure Gate Valve Class 1500-2500 Bolted Bonnet Flanged API 600 Approved

Sizes: 4" - 32" or DN100 - DN800
Pressure Rating: Class 1500 - Class 2500 or PN 260 - PN 420
Valve Materials: WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, Duplex Stainless Steels, etc.
Operated by: Handwheel, Gear, Pneumatic, Hydraulic and Electric actuator

High-Pressure Gate Valve Class1500-2500 Bolted Bonnet Flanged

Applicable standards of High-Pressure Gate Valves:

Design & Manufacture: API 600, API 6D, BS 1414
Face to Face: API 6D, ASME B16.10, EN 558, DIN 3202, BS 2080
Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220
Test: API 600, API 6D, EN 12266, ISO 5208

Tag:

gear operated gate valve,

high pressure gate valve,

cast steel gate valve
