API 602 Forged Steel Gate Valve Socket Weld 1/2-2 Inch A105

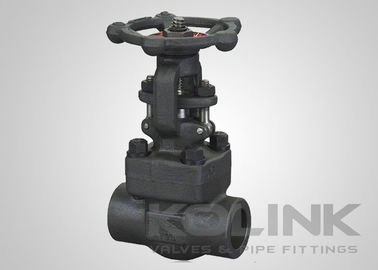

Large Image : API 602 Forged Steel Gate Valve Socket Weld 1/2-2 Inch A105

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T,L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

1/2" - 2" Or DN12 - DN50v

Pressure Rating:

Class 150 - Class 2500 Or PN 16 - PN 420

Material Of Valve Body: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, Etc. Operated By: Handwhe:

A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, Etc.

Operated By:

Handwheel

Highlight:

cast steel gate valve

gear operated gate valve

API 602 Forged Steel Gate Valve

API 602 Forged Steel Gate Valve, Socket Welded Gate Valve Regular Port Reduced

Sizes 1/2" - 2" or DN12 - DN50v
Pressure Rating Class 150 - Class 2500 or PN 16 - PN 420
Material of valve body A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
Operated by Handwheel

API 602 Forged Steel Gate Valve Socket-weld End SW Regular Port Reduced

Features of Forged Steel Gate Valves:

Outside screw and yoke
Rising stem and non-rising handwheel
Solid wedge
Full port or conventional port
Bolted bonnet, welded bonnet or pressure seal bonnet
Socket weld (SW), threaded, butt welded (BW) or flanged end

Applicable standards of Forged Steel Gate Valves:

Design & Manufacture: API 602, BS 5352, ASME B16.34
Face to Face: ASME B16.10, EN 558
Connection End: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5, EN 1092
Test and Inspection: API598, EN 12266
