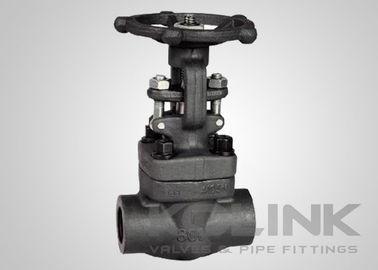

Forged Steel Gate Valve NPT Threaded Solid Wedge Class 800-1500

Large Image : Forged Steel Gate Valve NPT Threaded Solid Wedge Class 800-1500

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T, L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

1/2" - 2" Or DN12 - DN50

Pressure Rating:

Class 150 - Class 2500 Or PN 16 - PN 420

Material Of Valve Body:

A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, Etc.

Operated By:

Handwheel

Highlight:

cast steel gate valve

gear operated gate valve

Forged Steel Gate Valve Threaded End NPT Solid Wedge Class 800-1500

Sizes1/2" - 2" or DN12 - DN50
Pressure RatingClass 150 - Class 2500 or PN 16 - PN 420
Material of valve bodyA105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
Operated byHandwheel

Features of Forged Steel Gate Valves:

Outside screw and yoke
Rising stem and non-rising handwheel
Solid wedge
Full port or conventional port
Bolted bonnet, welded bonnet or pressure seal bonnet
Socket weld (SW), threaded, butt welded (BW) or flanged end

Applicable standards of Forged Steel Gate Valves:

Design & Manufacture: API 602, BS 5352, ASME B16.34
Face to Face: ASME B16.10, EN 558
Connection End: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5, EN 1092
Test and Inspection: API598, EN 12266

Tag:

gear operated gate valve,

high pressure gate valve,

cast steel gate valve

Contact Details

Shanghai Kolink Valve Co., Ltd.

Contact Person: Alex Wang

Tel: +86 136 1662 1376

Fax: 86-21-61277885
