Cast Iron Swing Check Valve GGG50 GG25 DN50-DN900 Class150-Class2500

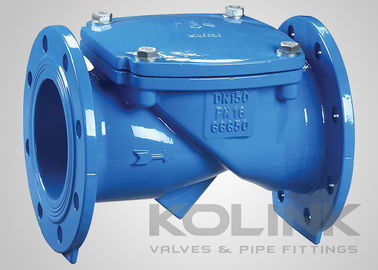

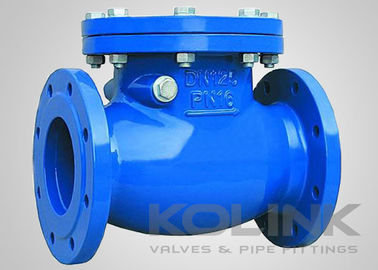

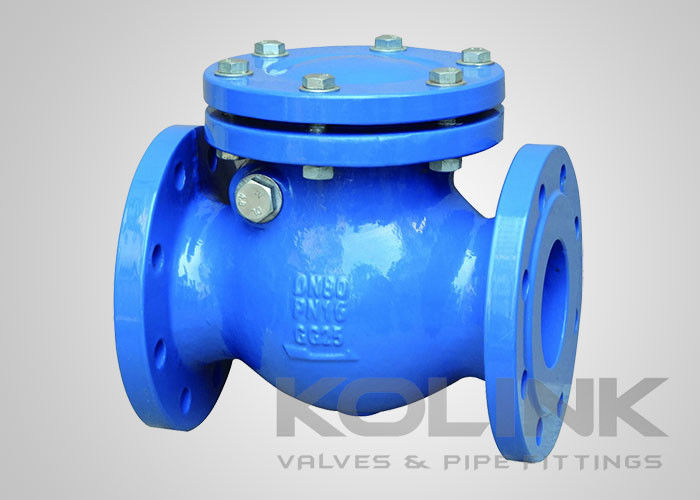

Large Image : Cast Iron Swing Check Valve GGG50 GG25 DN50-DN900 Class150-Class2500

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T, L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

2" - 36" Or DN50 - DN900

Pressure Rating:

Class150 - Class2500 Or PN16 - PN420

Material Of Valve Body:

WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, Etc.

Highlight:

swing check valve

silent check valve

GGG50 Cast Iron Swing Check Valve

Cast Iron Swing Check Valve GGG50 GG25, Non-return Valve Rubber Flapper

Sizes	2" - 36" or DN50 - DN900
Pressure Rating	Class150 - Class2500 or PN16 - PN420
Material of Valve Body	WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.

Cast Iron Swing Check Valve GG25 EN-GJL-250 A126 B Non-return Valve

Features of Cast Iron Swing Check Valves:

Swing Disc Design
Bolted Cover
Internal Hinge Pin Design Standard
Through-body Hinge Pin Design Available
Renewable Seat
Flanged or Butt-welding Ends
Extra Lever, Counter Weight, and Damper Available

Applicable Standards of Cast Iron Swing Check Valves:

Design & Manufacture: API 6D, BS 1868, ASME B16.34
Face to Face: API 6D, ASME B16.10, EN 558
Connection End: ASME B16.5, ASME B16.25, EN 1092, JIS B2220
Test and Inspection: API 6D, EN 12266, API 598, BS 6755
