Product Details:
Payment & Shipping Terms:
|
Sizes: | 1/2" - 12" Or DN12 - DN300 | Pressure Rating: | Class150 - Class2500 Or PN16 - PN420 |
---|---|---|---|
Operated By: | Handwheel, Gear, Pneumatic, Hydraulic And Electric Actuator. | Materials Of Valve Body: | WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, Etc. |
Highlight: | cast steel globe valve,y globe valve |

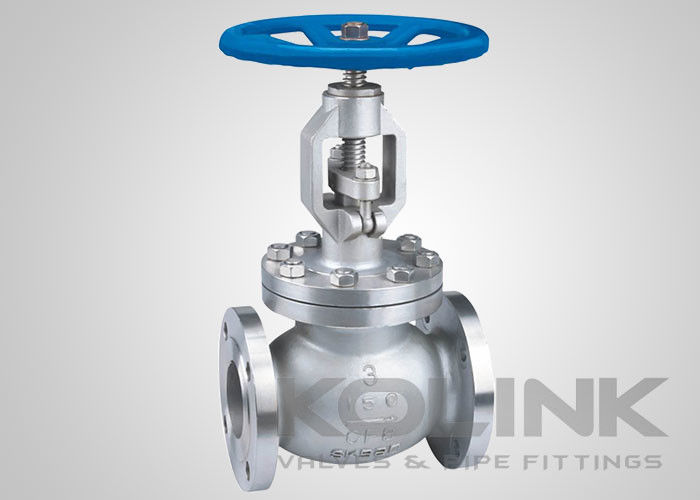

Stainless Steel Globe Valve Flanged CF8 CF8M CF3 CF3M Stop Valve
Features of Stainless Steel Globe Valves:
Straight Pattern Body Design
Swivel Plug Disc Design Standard
Flat and Regulating Type Disc Available
Bolted Bonnet
OS&Y, Rising Stem and Handwheel
Threaded-in Back Seat
Flanged or Butt-welding Ends
Gear or Actuator Available
Applicable Standards of Stainless Steel Globe Valves:
a) Design&Manufacture: BS 1873, ASME B16.34
b) Face to Face: ASME B16.10, EN 558, BS2080
c) Connection End: ASME B16.5, ASME B16.25, EN 1092
d) Test and Inspection: API 598, EN 12266, BS 6755
