DIN Cast Steel Globe Valve Flanged Manual 1/2-2 Inch

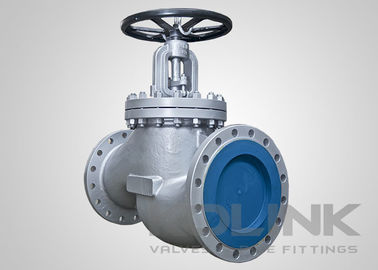

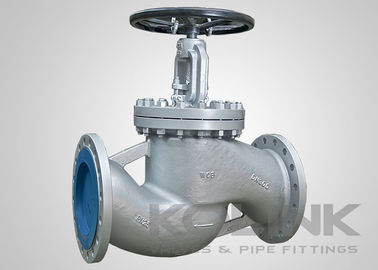

Large Image : DIN Cast Steel Globe Valve Flanged Manual 1/2-2 Inch

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T, L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

1/2" - 2" Or DN12 - DN50

Pressure Rating:

Class150 - Class2500 Or PN16 - PN420

Materials Of Valve Body:

A105, LF2, F11, F22, F304, F304L, F316, F316L, Etc.

Operated By:

Handwheel, Gear, Pneumatic, Hydraulic And Electric Actuator.

Highlight:

cast steel globe valve

Manual Operation globe valve

DIN Cast Steel Globe Valve

DIN Cast Steel Globe Valve PN10-160 Flanged Manual Operation

Sizes1/2" - 2" or DN12 - DN50
Pressure RatingClass150 - Class2500 or PN16 - PN420
Materials of Valve BodyA105, LF2, F11, F22, F304, F304L, F316, F316L, etc.
Operated byHandwheel, Gear, Pneumatic, hydraulic and Electric actuator.

DIN Cast Steel Globe Valve PN10-160 Flanged Manual Operation

Features of DIN Cast Steel Globe Valves:

Straight Pattern Body Design
Swivel Plug Disc Design Standard
Flat and Regulating Type Disc Available
Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet available
OS&Y, Rising Stem and Handwheel
Gear or Actuator Available

Applicable Standards of DIN Cast Steel Globe Valves:

Design&Manufacture: BS 1873, ASME B16.34
Face to Face: ASME B16.10, EN 558, BS2080
Connection End: ASME B16.5, ASME B16.25, EN 1092
Test and Inspection: API 598, EN 12266, BS 6755

Tag:

y globe valve,

cryogenic globe valve,

cast steel globe valve
