| Sizes: | 1/2" - 12" Or DN12 - DN300 | Pressure Rating: | Class900 - Class2500 Or PN150- PN420 |
|---|---|---|---|
| Materials Of Valve Body: | WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, Etc. | Operated By: | Handwheel, Gear, Pneumatic, Hydraulic And Electric Actuator. |
| High Light: | cryogenic globe valve,cast steel globe valve |
||

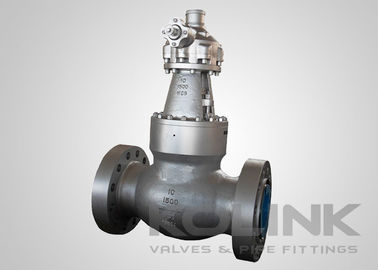

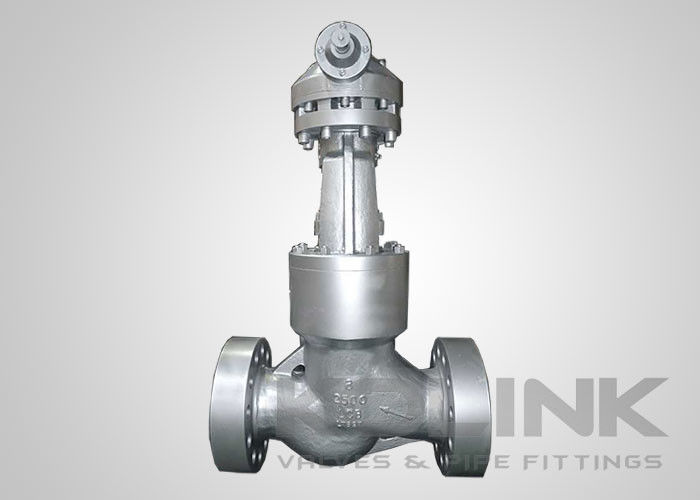

Pressure Seal Globe Valve Cast Steel Class 900-2500 High Pressure
Features of Pressure Seal Globe Valves:
Straight Pattern Body Design
Swivel Plug Disc Design Standard
Flat and Regulating Type Disc Available
Pressure Seal Bonnet
OS&Y, Rising Stem and Handwheel
Flanged or Butt-welding Ends
Gear or Actuator Available
Applicable Standards of Pressure Seal Globe Valves:
a) Design&Manufacture: BS 1873, ASME B16.34
b) Face to Face: ASME B16.10, EN 558, BS2080
c) Connection End: ASME B16.5, ASME B16.25, EN 1092
d) Test and Inspection: API 598, EN 12266, BS 6755
