Product Details:
Payment & Shipping Terms:
|
| Sizes: | 1/2" - 2" Or DN12 - DN50 | Pressure Rating: | Class150 - Class2500 Or PN16 - PN420 |
|---|---|---|---|
| Materials Of Valve Body: | A105, LF2, F11, F22, F304, F304L, F316, F316L, Etc. | Operated By: | Handwheel, Gear, Pneumatic, Hydraulic And Electric Actuator |
| High Light: | cryogenic globe valve,y globe valve,F316 Forged Steel Globe Valve |
||

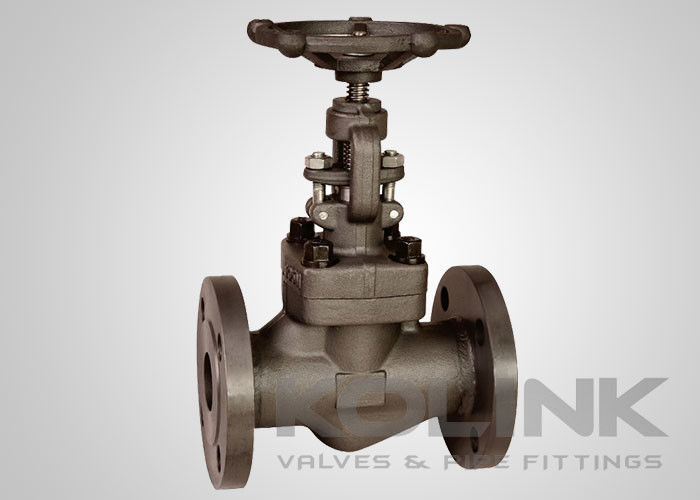

Forged Steel Globe Valve Integral Flanged Welded A105 F11 F22 F304 F316
Features of Forged Steel Globe Valves:
Straight Pattern Body Design
Swivel Plug Disc Design Standard
Flat and Regulating Type Disc Available
Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet available
OS&Y, Rising Stem and Handwheel
Gear or Actuator Available
Applicable Standards of Forged Steel Globe Valves:
a) Design&Manufacture: BS 1873, ASME B16.34
b) Face to Face: ASME B16.10, EN 558, BS2080
c) Connection End: ASME B16.5, ASME B16.25, EN 1092
d) Test and Inspection: API 598, EN 12266, BS 6755
