Pneumatic Actuated Concentric Butterfly Valve Shutoff And Throttling Operation

I'm Online Chat Now

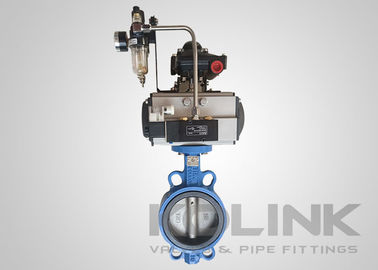

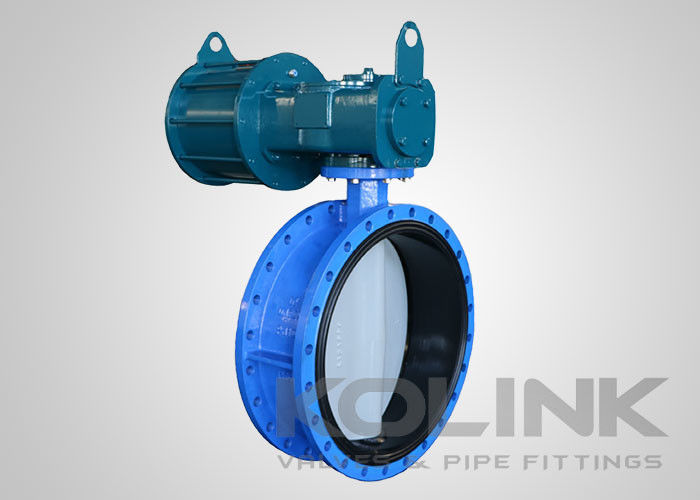

Pneumatic Actuated Concentric Butterfly Valve Shutoff And Throttling Operation

Pneumatic Actuated Concentric Butterfly Valve Shutoff And Throttling Operation
Pneumatic Actuated Concentric Butterfly Valve Shutoff And Throttling Operation Pneumatic Actuated Concentric Butterfly Valve Shutoff And Throttling Operation

Large Image :  Pneumatic Actuated Concentric Butterfly Valve Shutoff And Throttling Operation

Product Details:
Place of Origin: CHINA
Brand Name: KOLINK
Certification: PED 2014/68/EU,API 6D and ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 2-8 Weeks
Payment Terms: T/T, L/C
Supply Ability: 1000 Pieces/Month
Detailed Product Description
Sizes: 2" - 48" Or DN50 - DN1200 Pressure Rating: Class150 Or PN10 - PN16
Materials Of Valve Body: GG25, A126 B, GGG40, A536, WCB, LCB, CF8, CF3, CF8M, CF3M, Etc. Operated By: Lever, Gear, Pneumatic, Hydraulic And Electric Actuator
High Light:

ductile iron butterfly valve

,

rubber lined butterfly valve

Pneumatic Actuated Cast Iron Butterfly Valve Rubber Lined Concentric



Pneumatic Actuated Concentric Butterfly Valve Shutoff And Throttling Operation 0



Pneumatic Actuated Concentric Butterfly Valve Shutoff And Throttling Operation 1



Features of Pneumatic Actuated Resilient Seated Butterfly Valves:

Center Lined, Resilient Seat
Bi-Directional Sealing
Shutoff and Throttling Operation
Wafer Body Type, Lug Type or Flanged Type



Applicable Standards of Pneumatic Actuated Resilient Seated Butterfly Valves:
a) Design & Manufacture: API 609, EN 593, AWWA C504
b) Face to Face Dimension: API 609, EN 558
c) End Connection: ASME B16.5, EN 1092
d) Test and Inspection: API 598, EN 12266
