| Sizes: | 2" - 36" Or DN 50 - DN 900 | Pressure Rating: | Class150 Or PN6 - PN16 |
|---|---|---|---|
| Materials Of Valve Body: | GG25 / A126 B, GGG40 / A536 60-40-18, Etc. | Operation: | Manual, Gear, Pneumatic, Hydraulic And Electric Actuator |
| High Light: | stainless steel knife gate valve,electric knife gate valve,Bi directional Knife Gate Valve |
||

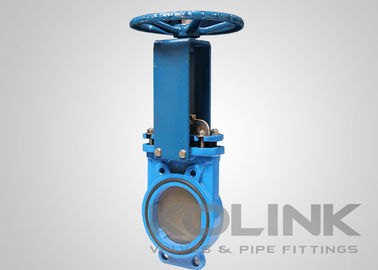

Bi-directional Knife Gate Valve U-seal Non-rising Stem Ductile Iron Cast Iron
Kolink knife gate valves are available in various designs, one-piece body and two-piece bodies, rising stem and non-rising stem, uni-direction and bi-direction structures, resilient and metal seat rings, bonnetless and bolted bonnet designs. For optional designs, deflection cone could divert the flow of abrasive slurries and protect valve seat from abrasion, V port disc and through conduit, design are used for throttling service, per customers' requirements.
Features of Bi-directional Knife gate valves:
Bi-directional design
Resilient seat
Wafer type cast iron body
Self-cleaning mechanism
Non-rising stem standard, rising stem optional
Plate yoke standard
Applicable Standards of Bi-directional Knife gate valves:
a) Design & Manufacture: MSS SP-61, ASME 16.34
b) Face to Face: MSS SP-81, ASME B16.10, EN 558
c) Connection End: ASME B16.5, EN 1092, JIS B2220
d) Test : MSS SP-81
