Uni-directional Knife Gate Valve Wafer Type Replaceable Seat

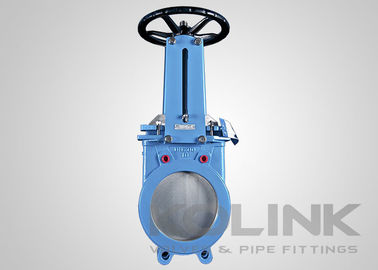

Large Image : Uni-directional Knife Gate Valve Wafer Type Replaceable Seat

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T, L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

2" - 36" Or DN 50 - DN 900

Pressure Rating:

Class150 Or PN6 - PN16

Materials Of Valve Body:

GG25 / A126 B, GGG40 / A536 60-40-18, Etc.

Operation:

Manual, Gear, Pneumatic, Hydraulic And Electric Actuator

Highlight:

pneumatic knife valve

electric knife gate valve

Uni-directional Knife Gate Valve Replaceable Rubber Seat Wafer Type

Sizes 2" - 36" or DN 50 - DN 900
Pressure Rating Class150 or PN6 - PN16
Materials of valve body GG25 / A126 B, GGG40 / A536 60-40-18, etc.
Operation Manual, Gear, Pneumatic, hydraulic and Electric actuator

Uni-directional Knife Gate Valve Replaceable Rubber Seat Wafer Type

Features of Uni-directional Knife Gate Valves:

Bi-directional design
Resilient seat
Wafer type cast iron body
Self-cleaning mechanism
Non-rising stem standard, rising stem optional
Plate yoke standard

Applicable Standards of Uni-directional Knife Gate Valves:

Design & Manufacture: MSS SP-61, ASME 16.34
Face to Face: MSS SP-81, ASME B16.10, EN 558
Connection End: ASME B16.5, EN 1092, JIS B2220
Test: MSS SP-81

Tag:

pneumatic knife valve,

electric knife gate valve,

stainless steel knife gate valve
