| Sizes: | 2" - 48" Or DN 50 - DN 1200 | Pressure Rating: | Class150 Or PN6 - PN16 |
|---|---|---|---|
| Materials Of Valve Body: | WCB, LCB, WC6, CF8, CF3, CF8M, CF3M, 4A, Etc. | Operation: | Pneumatic Actuator |
| High Light: | Flanged Automated Knife Valve,stainless steel knife gate valve,Pneumatic Actuated Knife Gate Valve |
||

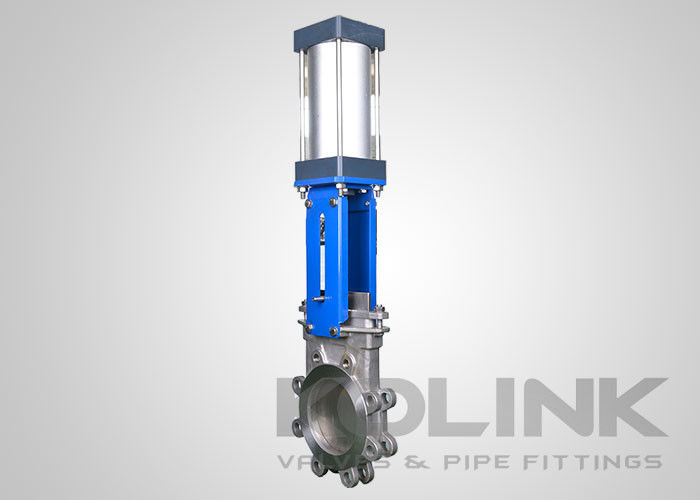

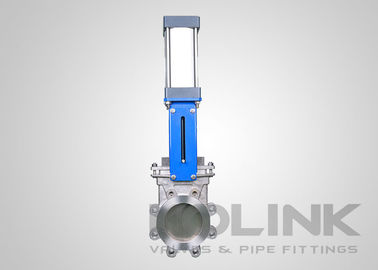

Pneumatic Actuated Knife Gate Valve Rising Stem Wafer Lugged
Features of Pneumatic Actuated Knife Gate Valves:
Unidirectional design
Replaceable resilient seat
Wafer type cast iron body
Self-cleaning mechanism
Rising stem, outside screw & yoke
Yoke type: Plate or Casting
Pneumatic actuator operation
Applicable Standards of Pneumatic Actuated Knife Gate Valves:
a) Design & Manufacture: MSS SP-61, ASME 16.34
b) Face to Face: MSS SP-81, ASME B16.10, EN 558
c) Connection End: ASME B16.5, EN 1092, JIS B2220
d) Test: MSS SP-81
