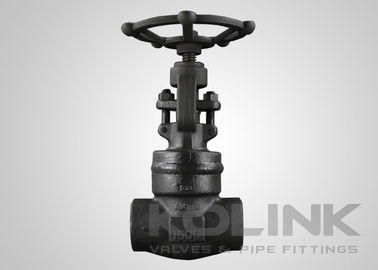

Welded Bonnet Forged Steel Globe Valve Class 800-2500 NPT Threaded

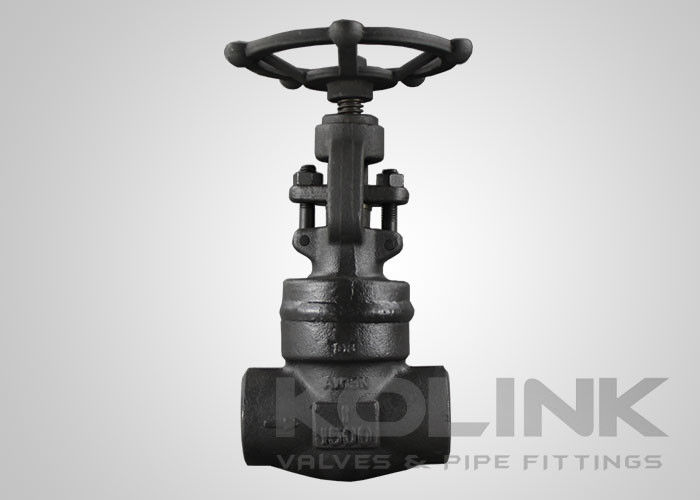

Large Image : Welded Bonnet Forged Steel Globe Valve Class 800-2500 NPT Threaded

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T, L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

1/2" - 2" Or DN12 - DN50

Pressure Rating:

Class 800 - Class 2500 Or PN 130 - PN 420

Material Of Valve Body:

A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, Etc.

Operated By:

Handwheel

Highlight:

forged steel globe valve

forged steel check valve

Welded Bonnet Forged Steel Globe Valve Handwheel NPT Threaded Class 800-2500

Sizes: 1/2" - 2" or DN12 - DN50

Pressure Rating: Class 800 - Class 2500 or PN 130 - PN 420

Material of valve body: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.

Operated by: Handwheel

For globe valves smaller than 2"(DN50), forged steel valves are recommended. Compared with castings, forged valve bodies offer the advantages of more uniform structure, greater density, higher strength integrity, enhanced dimensional characteristics, and closer dimensional tolerances.

The design of forged steel globe valves are also various: Full port, conventional port / reduced port; bolt bonnet, welded bonnet and pressure seal bonnet; socket weld (SW), threaded, butt welded (BW) and flanged end. Special designs include bellows seal globe valve, cryogenic globe valve, extended body globe valve, per customers' requirements.

Features of Welded Bonnet Forged Steel Globe Valves:

Straight Pattern Body Design
Swivel Plug Disc Design Standard
Flat and Regulating Type Disc Available
Outside Screw & Yoke
Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
Socket Weld (SW), Butt Weld (BW), Threaded End Available

Applicable standards of Welded Bonnet Forged Steel Globe Valves:

Design & Manufacture: API 602, BS 5352, ASME B16.34
Face to Face: ASME B16.10, EN 558
Connection End: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5, EN 1092
Test and Inspection: API 598, EN 12266
