Pressure Seal Forged Steel Globe Valve BW End Class 150-2500

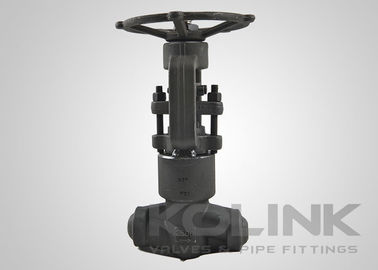

Large Image : Pressure Seal Forged Steel Globe Valve BW End Class 150-2500

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T, L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

1/2" - 2" Or DN12 - DN50

Pressure Rating:

Class 150 - Class 2500 Or PN 16 - PN 420

Material Of Valve Body:

A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, Etc.

Operated By:

Handwheel

Highlight:

cast steel globe valve

y globe valve

PSB Forged Steel Globe Valve

Pressure Seal Bonnet PSB Forged Steel Globe Valve Butt-welded End Stop Valve

Sizes: 1/2" - 2" or DN12 - DN50
Pressure Rating: Class 150 - Class 2500 or PN 16 - PN 420
Material of valve body: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
Operated by: Handwheel

Pressure Seal Forged Steel Globe Valve Butt-welded End Stop Valve

Features of Pressure Seal Forged Steel Globe Valves:

Outside Screw & Yoke
Solid wedge
Full port or conventional port
Pressure Seal Bonnet
Socket Weld (SW), Butt Weld (BW), Threaded End Available

Applicable standards of Pressure Seal Forged Steel Globe Valves:

Design & Manufacture: API 602, BS 5352, ASME B16.34
Face to Face: ASME B16.10, EN 558
Connection End: ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5, EN 1092
Test and Inspection: API598, EN 12266

Tag:

y globe valve,

cryogenic globe valve,

cast steel globe valve
