Bellows Seal Globe Valve DN15-DN300 Class150-Class900 Flanged

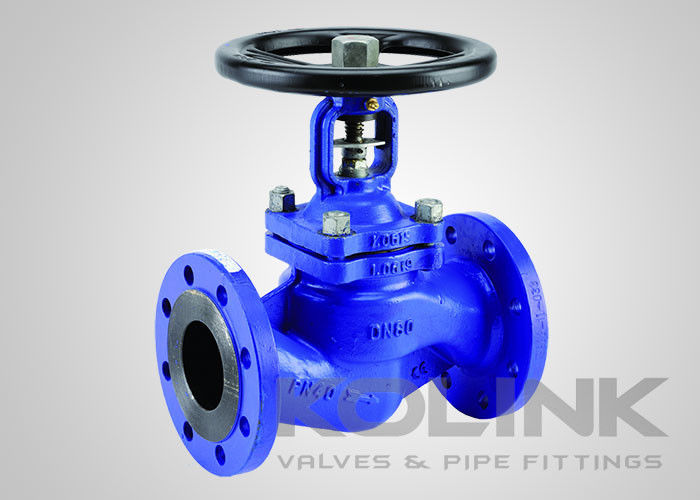

Large Image : Bellows Seal Globe Valve DN15-DN300 Class150-Class900 Flanged

Product Details:

Place of Origin:	CHINA
Brand Name:	KOLINK
Certification:	PED 2014/68/EU,API 6D and ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	2-8 Weeks
Payment Terms:	T/T, L/C
Supply Ability:	1000 Pieces/Month

Contact Now

Detailed Product Description

Sizes:

1/2" - 12" Or DN15 - DN300

Pressure Rating:

Class150 - Class900 Or PN16 - PN150

Materials Of Valve Body:

WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, Etc.

Operated By:

Handwheel, Gear, Pneumatic, Hydraulic And Electric Actuator.

Highlight:

cryogenic globe valve

y globe valve

Bellows Seal Globe Valve DIN

Bellows Seal Globe Valve DIN EN PN 16 - 63, Cast Steel Flanged Stop Valve

Sizes: 1/2" - 12" or DN15 - DN300
Pressure Rating: Class150 - Class900 or PN16 - PN150
Materials of Valve Body: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.
Operated by: Handwheel, Gear, Pneumatic, hydraulic and Electric actuator.

Bellows Seal Globe Valves are suitable for inflammable, explosive, poisonous and precious media.

The bellows seal globe valve is provided with double sealing construction consisting of bellows, filling and upper sealing to ensure no leak at the valve.

The bellows are made of stainless steel or special alloys. The sealing construction is reasonable in design, fatigue-proof, and satisfactory in a useful life.

Bellows seal globe valve could be mounted on all sorts of the pipeline for cutting or connecting the medium. Made of specific material, the product applies to various mediums such as water, steam, oil, nitric acid, acetic acid, oxidizing material, carbamide and so on.

Features of Bellows Seal Globe Valves:

Bellows Seal Type
Extended Bonnet
Outside screw and yoke
Rising stem and non-rising handwheel
Manual operation standard, gear operator and actuation available
Butt-weld end or flange end

Applicable standards of Bellows Seal Globe Valve:

Design & Manufacture: BS 1873, ASME B16.34
Face to Face: ASME B16.10, EN 558, BS2080
Connection End: ASME B16.5, ASME B16.25, EN 1092
Test and Inspection: API 598, EN 12266, BS 6755
