Product Details:
Payment & Shipping Terms:
|
| Sizes: | 2" - 24" Or DN50 - DN600 | Pressure Rating: | Class 150 - Class 2500 Or PN 16 - PN 420 |
|---|---|---|---|
| Valve Materials: | WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, Duplex Stainless Steels, Etc. | Operated By: | Wrench, Gearbox, Pneumatic, Hydraulic And Electric Actuator |
| High Light: | ptfe sleeved plug valve,non lubricated plug valve |
||

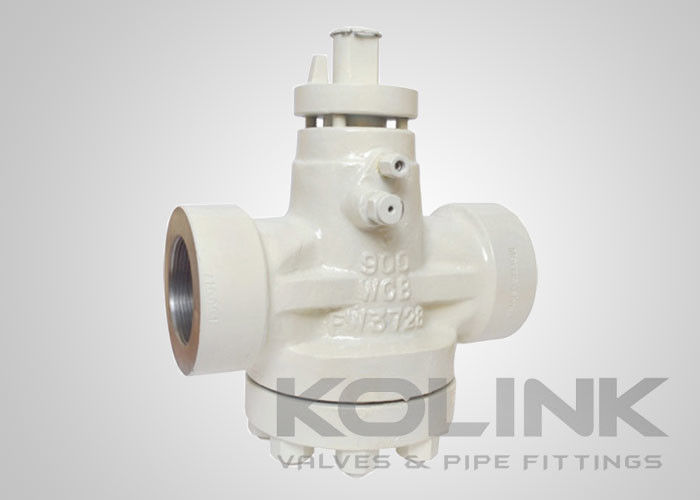

Threaded Plug Valve Cast Steel Pressure Balanced Lubricated
Features of Threaded Pressure Balanced Lubricated Plug Valve:
Metal-to-metal seat
Lubricant injection for bubble tight seal
Inverted Plug with the bottom cover
Pressure Balanced Type, light operation
Manual operation standard, gear operator and actuation available
Flange end: raised face or ring type joint
Applicable standards of Threaded Pressure Balanced Lubricated Plug Valve:
a) Design & Manufacture: API 599, API 6D
b) Face to Face: API 6D, ASME B16.10, EN 558, DIN 3202, BS 2080
c) Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220
d) Test : API 598, API 6D, EN 12266, ISO 5208
