Bonneted Knife Gate Valve Flanged DN50-DN1200 Class150 Manual or Pneumatic

I'm Online Chat Now

Bonneted Knife Gate Valve Flanged DN50-DN1200 Class150 Manual or Pneumatic

Bonneted Knife Gate Valve Flanged DN50-DN1200 Class150 Manual or Pneumatic
Bonneted Knife Gate Valve Flanged DN50-DN1200 Class150 Manual or Pneumatic

Large Image :  Bonneted Knife Gate Valve Flanged DN50-DN1200 Class150 Manual or Pneumatic

Product Details:
Place of Origin: CHINA
Brand Name: KOLINK
Certification: PED 2014/68/EU,API 6D and ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 2-8 Weeks
Payment Terms: T/T, L/C
Supply Ability: 1000 Pieces/Month
Detailed Product Description
Sizes: 2" - 48" Or DN 50 - DN 1200 Pressure Rating: Class150 Or PN6 - PN16
Materials Of Valve Body: WCB, LCB, WC6, CF8, CF3, CF8M, CF3M, 4A, Etc. Operation: Manual, Gear, Pneumatic, Hydraulic And Electric Actuator
Highlight:

pneumatic knife valve

,

electric knife gate valve

Bonneted Pneumatic Knife Gate Valve Flanged, Cast Or Fabricated Body, Chain Wheel Option
Product Specifications
Sizes: 2" - 48" or DN 50 - DN 1200
Pressure Rating: Class150 or PN6 - PN16
Materials of valve body: WCB, LCB, WC6, CF8, CF3, CF8M, CF3M, 4A, etc.
Operation: Manual, Gear, Pneumatic, hydraulic and Electric actuator

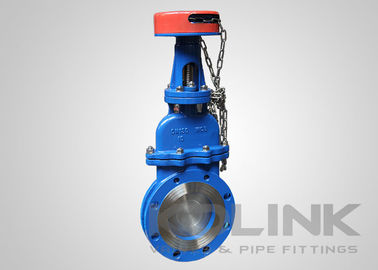

Bonneted Knife Gate valve Flanged Chain Wheel Operation Cast Steel
Bonneted Knife Gate Valve Flanged DN50-DN1200 Class150 Manual or Pneumatic 0 Bonneted Knife Gate Valve Flanged DN50-DN1200 Class150 Manual or Pneumatic 1 Bonneted Knife Gate Valve Flanged DN50-DN1200 Class150 Manual or Pneumatic 2

Kolink knife gate valves are available in various designs, one-piece body and two-piece bodies, rising stem and non-rising stem, uni-direction and bi-direction structures, resilient and metal seat rings, bonnetless and bolted bonnet designs. For optional designs, deflection cone could divert the flow of abrasive slurries and protect valve seat from abrasion, V port disc and through conduit, design is used for throttling service, per customers' requirements.

Features of Bonneted Knife Gate valves:
  • Bolted bonnet design for non-leakage through packing chamber
  • Beveled knife on metal or resilient seats
  • Self-cleaning mechanism
  • Uni-direction or bi-directional design
  • Rising stem, outside screw & yoke
Applicable Standards of Bonneted Knife Gate valves:
  • Design & Manufacture: MSS SP-61, ASME 16.34
  • Face to Face: MSS SP-81, ASME B16.10, EN 558
  • Connection End: ASME B16.5, EN 1092, JIS B2220
  • Test: MSS SP-81
