Product Details:
Payment & Shipping Terms:
|
| Sizes: | 1/4" - 2" , DN 8 - DN 50 | Pressure Rating: | 1000 Psi / Class150 – Class 300 / PN 10 – PN 63 |
|---|---|---|---|
| Material Of Valve Body: | CF8, CF3, CF8M, CF3M, WCB, Etc. | Operated By: | Lever, Pneumatic And Electric Actuator |
| High Light: | stainless steel ball valve,pneumatic actuated ball valve,1 piece Stainless Steel Ball Valve |
||

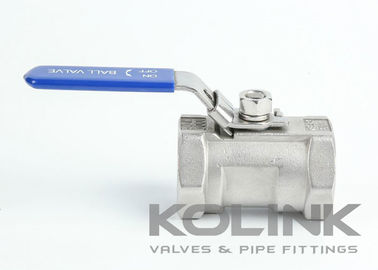

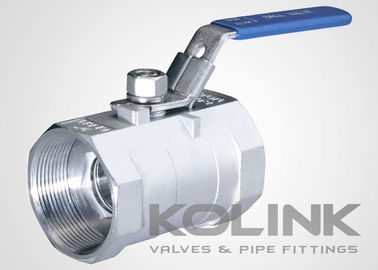

1-piece Stainless Steel Ball Valve BSP Screw NPT Reduced bore 1000 WOG
1-piece Stainless Steel Ball Valve is the most cost-effective valve to control flow. The valve body, ball and stem are all stainless steel, and the robust one-piece type body with All PTFE packing, washer and gaskets, provides bubble-tight shutoff at 1000 psi.
The result of the valve body being one piece is that a smaller ball has to be used, leading to a reduced port, which is also called a reduced bore or a standard bore. Stainless steel 1-piece ball valves are used in general industrial and chemical applications and are primarily used manually.
Features of 1-piece Stainless Steel Ball Valves:
1000 PSI Pressure Rating
WOG (Suitable for Water, Oil & Gas media)
Reduced / Standard Port
NPT Threaded End for Pipe Connection
Floating Ball Type
Antistatic Design
Blow-out Proof Stem
Optional lockable handle
Applicable Standards of 1-piece Stainless Steel Ball Valves:
a) Design & Manufacture: ASME B16.34, BS 5351, API 607
b) Face to Face: Kolink’s Standard
c) End Connection: NPT / BSP Threaded
d) Pressure Test: API 598, EN 12266
